Datalogger

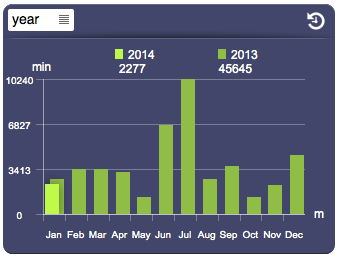

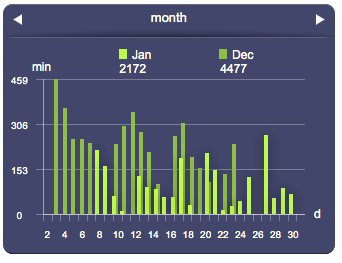

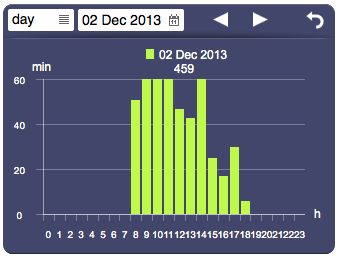

Works in combination with the data logger function to present a collection of data using time-based statistical charts. This object automatically adapts the graphical layout and size of the charts based on the overall object's size. The default presentation can be customized using several optional attributes. A datalogger can have a browser mode (if available server-side) for consulting past data. If a datalogger in browser mode isn't visible for more than a minute, it automatically resets to live mode.

Parameters

• id: the object's ID, used by UISets. Required
• loggerID: the datalogger ID
• position: the object's position. Use the pixels or rows and columns coordinates format
• size: the chart's area's width and height
• label: the values axis label
• attributes: list of UI attribute ids and values defining the chart's aspect and data. Setting this parameter is the same as setting each UI attribute with a UISet

Syntax

(datalogger[!<id>] <loggerID>; <pos>; <width>; <height>; <label>; <attributes>)

E.g.

(datalogger!datalogger1 edl; x80y60; 820; 500; kWh; controls=toolbar)

UI Attributes

Common attributes

Name	Value	Description
pos	x<x>y<y>	Position specified as x/y coordinates. E.g. x-5y10
	r<r>c<c>	Position specified as row/column. E.g. r1c2
visible	true	Default. Show the object
	false	Hide the object
blink	true | slow	Blink the object at a slow speed
	fast	Blink the object at a fast speed
	false	Stop the blinking
opacity	0.0 ... 1.0	Object opacity from 0 (not visible) to 1 (fully visible)
rotation	0 ... 360	Object rotation in degrees. Images are rotated around the center point, all other objects are rotated around the top left corner

Datalogger attributes

Name	Value	Description
type	bars	Draw bars
	gauge	Draw a gauge, for charts with a single value. Use with the "value" attribute
	points	Draws points
	line	Draws a line connecting the values
	spline	Draws a spline connecting the values
mode	live	Live mode
	browser	Browser mode
slot	<number>	Show a specific slot, from 0 to the number of slots-1
scale	year	Set the live scale to year
	month	Set the live scale to month
	day	Set the live scale to day
	hour	Set the live scale to hour
browserscale	year	Set the browser scale to year
	month	Set the browser scale to month
	day	Set the browser scale to day
	hour	Set the browser scale to hour
browserdate	date and time, in the "yyyymmddhh" format	Set the browser date and time. These formats will also be accepted: "yyyy", "yyyymm", "yyyymmdd"
controls	tabs	Show tabs on live mode for scale and slots
	toolbar	Shot a toolbar to control live and browser modes
	none	Don't show any controls
panel	true	Show background panel
	false	Hide background panel
multichart	true	Show multiple charts on live mode
	false	Show a single chart on live mode, based on the selected scale
pastperiod	true	Show past period
	false	Hide past period
bymonth	true	Show monthly data (days)
	false	Hide monthly data
byday	true	Show daily data (hours)
	false	Hide daily data
byhour	true	Show hourly data (minutes)
	false	Hide hourly data
byminute	true	Show data by minute (seconds)
	false	Hide data by minute
minvalues	true	Show minimum values, if in range mode
	false	Hide minimum values
avgvalues	true	Show average values, if in range mode
	false	Hide average values
maxvalues	true	Show maximum values, if in range mode
	false	Hide maximum values
totals	true	Show totals
	false	Hide totals
legend	true	Show all legends
	false	Hide legends
	<comma-separated list of values>	List of legends (min, avg, max) to show
presentvaluecolor	<CSS color>	A color that applies to all present values
	<CSS color>,<CSS color>,<CSS color>	Colors that apply respectively to minimum, average and maximum present values
pastvaluecolor	<CSS color>	A color that applies to all past values
	<CSS color>,<CSS color>,<CSS color>	Colors that apply respectively to minimum, average and maximum past values
valuelabelcolor	<CSS color>	Value label's color
valuelabeltype	inside	Value labels are shown inside (if "type" is bars, points or gauge) or over (if "type" is line or spline)
	outside	Value labels are shown above or below
	popup	Value labels are shown on mouseover, or on touch (if on a touch-enabled device)
group	<value>	Name of a group. Dataloggers with the same group are synchronized (controlling one affects the others)
notches	<value>	Number of notches on the x-axis (for vertical charts) or on the y-axis (for horizontal charts)
axiscolor	<CSS color>	Axis color
drawaxis	true	Default. The axes are visible (also notches and labels)
	false	The axes are not visible (also notches and labels)
notchcolor	<CSS color>	Color of the axis notches
labelcolor	<CSS color>	Color of the axis and bars labels
pointsize	number of pixels	Point size (use for the points chart type)
stroke	number of pixel	Pixel size of the stroke that applies to line and spline chart's types
thresholds	<comma-separated list of values>	List of values at which to display a line (threshold)
thresholdcolor	<CSS color>	Color of threshold lines
thresholdcolors	<comma-separated list of CSS colors>	List of colors of threshold lines, one value each line

A CSS color can be specified as

• hex value: #<rr><gg><bb> E.g. #FF1010
• color name: red, blue, white...
• as rgb: rgb(<r>,<g>,<b>) E.g. rgb(255,30,30)
• as rgba: rgba(<r>,<g>,<b>,<alpha>) E.g. rgba(255,30,30,0.5)
