Axis Cameras
How to configure Axis cameras with Hsyco
Section titled “How to configure Axis cameras with Hsyco”From a Web browser, typer the URL to access the Axis camera interface. (for example http://192.168.1.180).

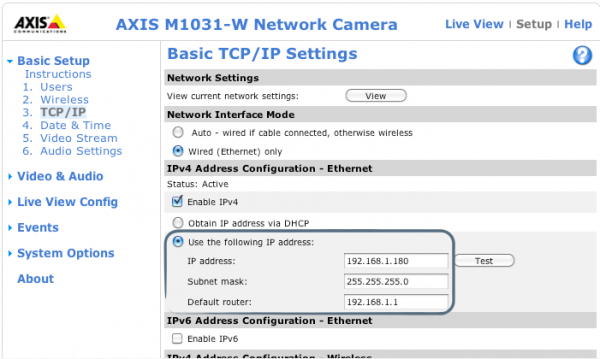

Basic Setup > TCP/IP: To change the camera IP address go to the basic TCP/IP Settings section:

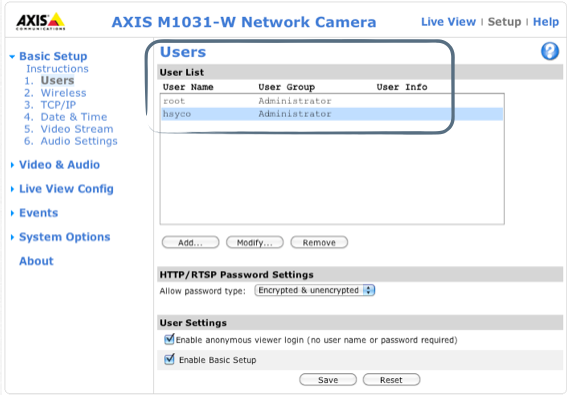

Basic Setup > Users > Add: add the user “hsyco” setting User Name and Password as Settings (Camera.axis.User = hsyco Camera.axis.Password = 00000000)
User Name: “hsyco” Password: “00000000”
Motion and PIR detection configuration with old firmware (before 2011)

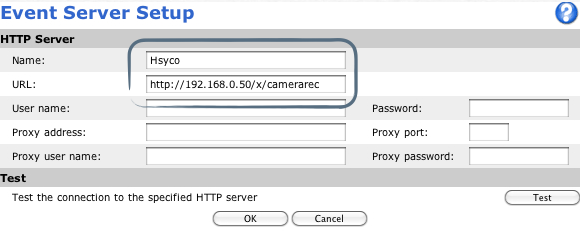

Section titled “Motion and PIR detection configuration with old firmware (before 2011)”Events > Event Servers > Add HTTP: add a new HTTP Server and specify: Name: Hsyco, for example URL: http://192.168.0.50/x/camerarec (192.168.0.50 is the HSYCO IP address)

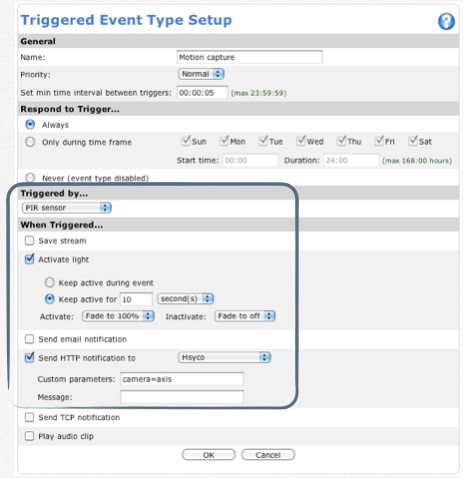

Events > Event Types > Add Triggered: event triggered by a PIR sensor
Send HTTP notification to the HSYCO server and specify the camera id, as defined in Settings
- Send HTTP notification to “Hsyco”
- Custom parameters: camera=axis

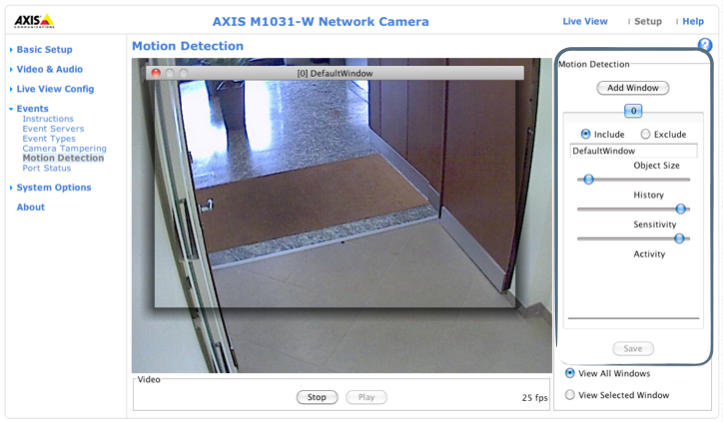

The following screenshot shows an example of an event triggered by motion detection. First of all, you need to add the window of motion (Events > Motion Detection)

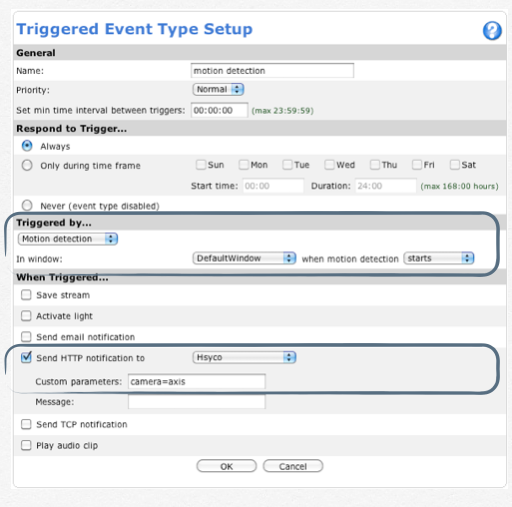

Events > Event Types > Add Triggered: define the event triggered by motion detection
Send HTTP notification to the HSYCO server and specify the camera id, as defined in the hsyco.ini file
- Send HTTP notification to “Hsyco”
- Custom parameters: camera=axis
Motion and PIR detection configuration with new firmware (after 2011)

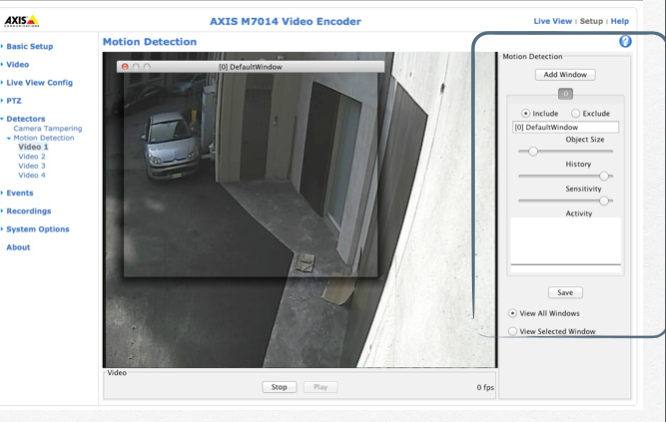

Section titled “Motion and PIR detection configuration with new firmware (after 2011)”Detectors > Motion Detection. Add window.

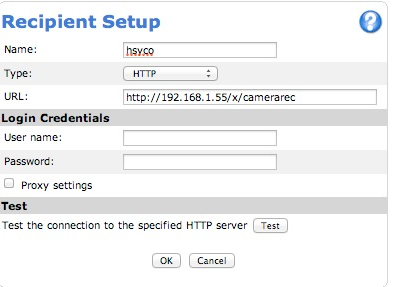

Events > Recipients and click “Add...”. Set as follows:
- Type:HTTP
- URL: http://HSYCOIPADDRESS/x/camerarec

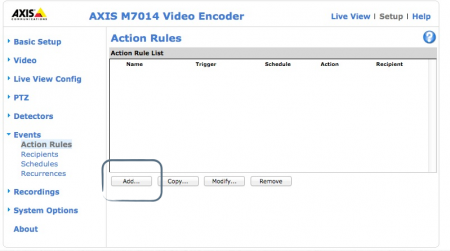

Events > Action Rules and click “Add...”

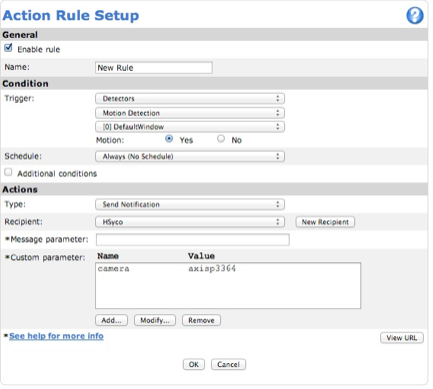

Events > Action Rule > Add > Action Rule Setup: event triggered by motion detection
In this example the name of camera is "axisp3364", as defined in Settings
