This tutorial describes how to create a project with the Project Editor tool.

To access the Project Editor enter the following URL in your Web Browser:

https://192.168.0.50/hsycoserver/manager

If you need more information about the first login to Hsyco please read first this: Tutorial1

Create a new project

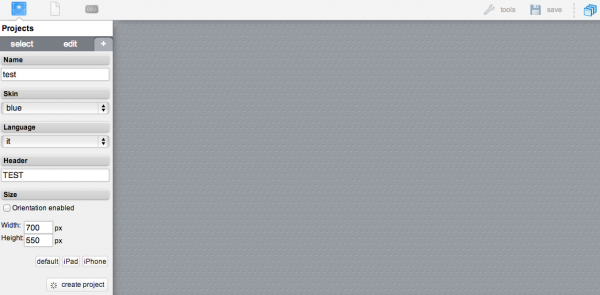

Create a new project by clicking the "+" icon.


Assign a name to the project (for example test) and a title (Header). Finally click "create project".


Add an image

Let's add an image to the out project. Click the icon Tutorial4-7.png on the top left side of the control bar.

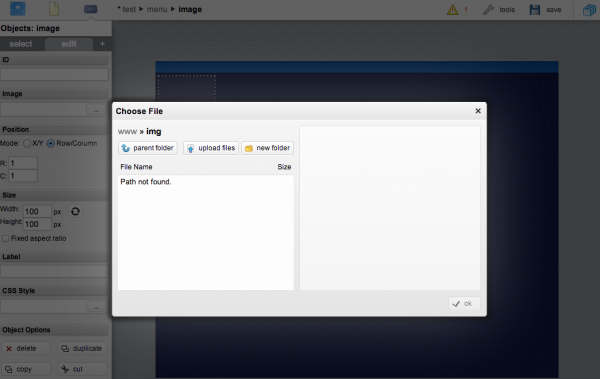

Search for the "image" tab and then click "+"

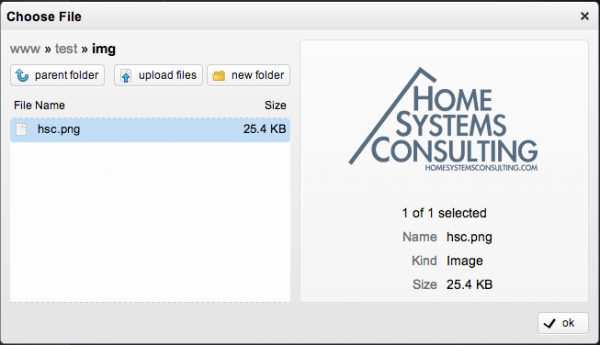

Select and upload an image from your hard drive.


For example in this tutorial we are uploading "hsc.png". (Only png and jpg images are supported)


You can easily resize the image by using the "Fixed Aspect Ratio" options.


Add a page and link it

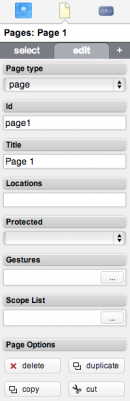

Add a new page by clicking this icon Tutorial4-8.png and then select "page".


Go back to the menu page by selecting the "page" toolbar and clicking on the "menu" tab.


Add a "link" object and edit its attributes. Select "page1" from the dropdown menu.


To save the project just press the button Tutorial4-12.png on the top right corner of the "Project Editor".


To access the interface you just created, enter the following URL in your Web Browser:

https://192.168.0.50/hsycoserver/test
