Ekey Home

eKey Home is a finger scanner that can be easily integrated in HSYCO using the ekey home CV UDP RS485 module and the Syslog service.

What to I need?

Hsyco, of course, then ekey home CV UDP RS485 and eKey Home finger scanner.

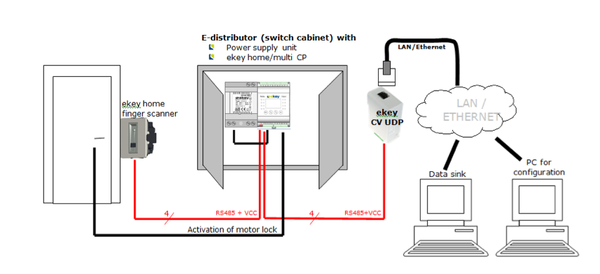

This is a simple scheme of what you need:

Integration

In events programming file let's add this lines:

function SysLogEvent(address, log) : {
        if (address == "192.168.1.243"){
               idSensor = "sensor1"
               split = log.split("_");
               varSet("$"+idSensor+"-"+"userid", split[1]);
               varSet("$"+idSensor+"-"+"username", split[2]);
               varSet("$"+idSensor+"-"+"userstatus", split[3]);
               varSet("$"+idSensor+"-"+"fingerid", split[4]);
               varSet("$"+idSensor+"-"+"key", split[5]);
               varSet("$"+idSensor+"-"+"serial", split[6]);
               varSet("$"+idSensor+"-"+"unitname", split[7]);
               varSet("$"+idSensor+"-"+"action", split[8]);
} else if (address == "192.168.1.244"){
               idSensor = "sensor2"
               split = log.split("_");
               varSet("$"+idSensor+"-"+"userid", split[1]);
               varSet("$"+idSensor+"-"+"username", split[2]);
               varSet("$"+idSensor+"-"+"userstatus", split[3]);
               varSet("$"+idSensor+"-"+"fingerid", split[4]);
               varSet("$"+idSensor+"-"+"key", split[5]);
               varSet("$"+idSensor+"-"+"serial", split[6]);
               varSet("$"+idSensor+"-"+"unitname", split[7]);
               varSet("$"+idSensor+"-"+"action", split[8]);
       }
}

This code will generate variables as in this example:

$SENSOR1-ACTION : values, "1" = open, "2" = rejection of unknown finger

$SENSOR1-FINGERID : "1" = left hand little finger, "2" = left hand ring finger ... "0" right hand little finger, "-" = no finger

$SENSOR1-KEY : key id, "-" = undefined

$SENSOR1-SERIAL : serial code of the finger scanner

$SENSOR1-UNITNAME : finger scanner name

$SENSOR1-USERID : user number - "0000" = undefined

$SENSOR1-USERNAME : username

$SENSOR1-USERSTATUS : "0" user is disabled, "1" user is enabled, "-" = undefined
