The BOSCH FPA-5000 is a modular fire panel system.

This I/O server requires the FPA firmware version 2.12.7 or later.

Communication

Be sure to use BOSCH sofware management tool RPS version 4_0_11 or later for the FPA configuration.

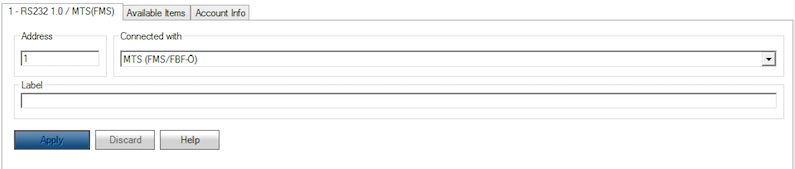

Configure the RS-232 Communication Module module as follows:


After the upload configuration process the FPA-5000 is ready to be connected via RS-232.

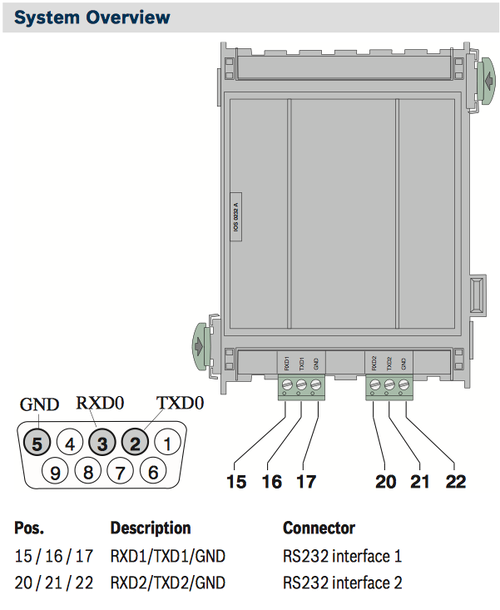

RS-232 Communication Module overview:



RS-232 parameters:

Baud rate 9600
Data bits 7
Stop bit 1
Parity even
Flow control none

HSYCO Configuration

Add a BOSCHFPA I/O Server in the I/O Servers section of the Settings and set its parameters:

Communication

  • Comm ID: select the comm port connected to the panel.

High Availability

  • Shutdown when inactive: defaults to true.

Options

ID Default Values Description
gui true true enable support for the UI (event log object)
false disable UI support
language system language en language of log and display messages. Supported values are English, Italian and German
it
de
logsize 100 n ≥ 0 the number of log lines to display in the UI object

boschfpa.ini

The boschfpa.ini file is an optional configuration file located in the main directory (same directory as hsyco.ini or hsyco.jar) and used to define zones (lines) names. If defined, these names will be used instead of the original <logical address>.<subaddress> format in the log files and GUI event log object.

Changes to the boschfpa.ini file are automatically detected and don't require a restart to become effective.

Note This file is case sensitive.

For each zone (line), enter a line formatted as:

<io_server_id>.line.<logical address>.<subaddress> = <name>

For instance:

fpa.line.3.1 = DATA ROOM SENSOR
fpa.line.4.1 = GENERATORS ROOM

Datapoints

ID Value R/W Description
connection online R connection established
offline R HSYCO can't connect to the panel
buzzer off R buzzer silenced (forced event)
W silence the buzzer
line.<logical address>.<subaddress> bypass R bypass
blocked R blocked
warningthreshold R threshold warning
tamper R tamper alarm
alarminvestigation R alarm verification
invalid R invalid
fire R fire
fireprealarm R fire pre-alarm
firedaymode R fire day mode
normal R normal
fault R fault
troublelight R minor fault
supervisorymonitorwater R supervisory, monitor, water
off R off
on R on
paperout R out of paper
powerfail R power fail
activated R activated
pollution R heavy contamination
pollutionlight R minor contamination
walktestfire R walk test fire
walktestnormal R walk test normal
walktesttrouble R walk test fault
walktestoff R walk test off
walkteston R walk test on
walktestactivation R walk test activation

status.bypass
status.blocked
status.warningthreshold
status.tamper
status.alarminvestigation
status.invalid
status.fire
status.fireprealarm
status.firedaymode
status.normal
status.trouble
status.troublelight
status.supervisorymonitorwater
status.off
status.on
status.paperout
status.powerfail
status.activated
status.pollution
status.pollutionlight
status.walktestfire
status.walktestnormal
status.walktesttrouble
status.walktestoff
status.walkteston
status.walktestactivation

1 R one or more lines in this state
0 R no lines in this state

User Interface

UISET Actions

ID Attribute Set to
logs value the latest entries of the security log (as many as specified in hsyco.ini)


Log Files

A permanent record of all the events shown in the log page is saved in a file called security.log in the logs/YYYY directory for the current year.

This file is never overwritten or deleted by HSYCO.

2014.07.10 17:27:24.873 - fpa - fault: 2451.0
2014.07.10 17:27:46.813 - fpa - fire: data room sensor
2014.07.10 17:27:48.851 - fpa - activated: 1603.1
2014.07.10 17:27:54.002 - fpa - activated: 1602.1
2014.07.10 17:27:54.924 - fpa - activated: 1601.1
2014.07.10 17:28:10.609 - fpa - normal: data room sensor
2014.07.10 17:28:11.603 - fpa - normal: 2451.0

Other information related to the BOSCH FPA driver may be saved in the daily message.log files.


Release Notes

3.4.0

  • initial release


FPA-5000 is a registered trademark of Bosch Security Systems.
