The SIGFOX Utility application provides a graphical interface to configure a SIGFOX I/O Server. You can choose your SIGOX I/O Server in execution by selecting it on the top of the page.

In order to automatically add new Sigfox devices to SIGFOX I/O Server enable auto-discovery ("Auto-discovery" checkbox). If you have set your Sigfox API user credentials in SIGFOX I/O Server configuration, with auto-discovery you will retrieve all devices associated to your Sigfox account; if you haven't set API user credentials you will see new devices only on the next message coming from them.

Sigfox devices will appear in the list:

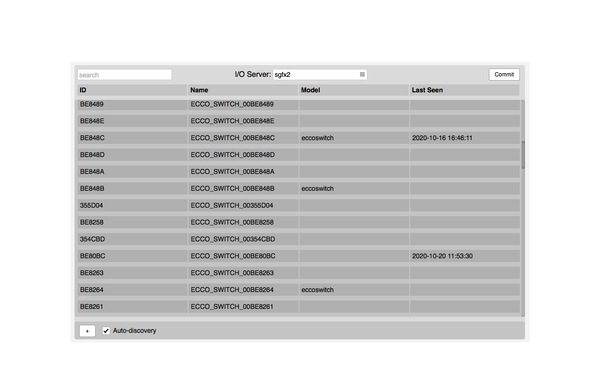

Devices discovery


From the list, click on each device to edit and save its configuration.

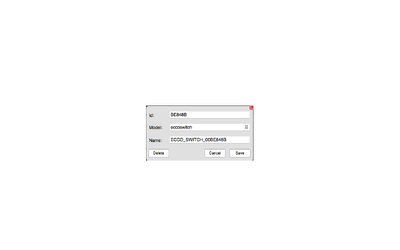

Device configuration

Parameters:

  • ID: the ID of the device. It cannot be empty
  • Name: device name
  • Model: device model (select among those available)


To manually add a device click on the "+" button at the bottom-left corner of the page.

To remove a device, select it from the list and click on "Delete" twice to confirm. If the auto-discovery is enabled, the device will reappear in the list upon the next message coming from it.

Disable the auto-discovery when all the required devices have been configured.

The devices list shows the following fields:

  • ID: ID of the device
  • Name: device name
  • Model: device model
  • Last seen: date and time of the last received valid message (including keep-alive)

Committing the configuration

When all devices are configured, click on the "Commit" button on the top-right corner of the main page. The configuration will be persisted and the SIGFOX I/O Server will restart with the new configuration.
