The Wolf8Access Utility application provides a user interface to configure all the keys associated to all Wolf8Access EVO modules. You can associate a name to all Wolf8Access keys. When a Wolf8Access I/O Server is defined in HSYCO, the Wolf8Access Utility will appear among the applications of the manager.

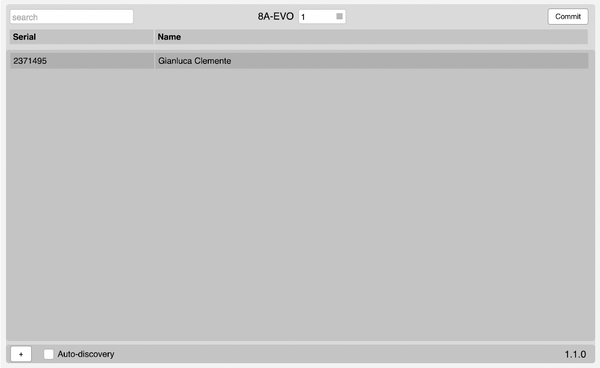

To automatically discover all the keys associated to all Wolf8Access EVO modules, enable auto-discovery ("Auto-discovery" checkbox). All discovered keys will appear in the list:


Clients discovery

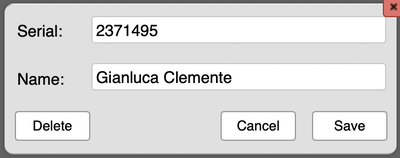

From the list, click on each voice to edit, save or delete relative key configuration.

Client configuration

Parameters:

  • Serial: the serial number associated to that key. It's automatically generated by the corresponding Wolf8Access EVO module
  • Name: name associated to that key


To manually add a key click on the "+" button at the bottom-left corner of the page.

To remove a key, click on it from the list, click on "Delete" and confirm. If the auto-discovery is enabled, the key will reappear upon the next access attempt from it.

Disable the auto-discovery when all the required keys have been configured.

Committing the configuration

When all keys are configured, click on the "Commit" button on the top-right corner of the main page. The configuration will be persisted and the Wolf8Access I/O Server will restart with the new configuration.
