SMS (I/O Server Object)

For a description and a complete list of UI Objects, see UI Objects.

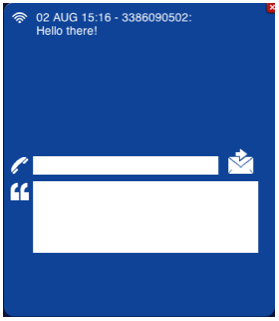

The user interface for sending SMS messages:

The SMS object is listed in the Project Editor’s new object list only when at least one GSM I/O Server is defined.

For further details refer to the GSM I/O Server Application Note.

Parameters

server id: the server ID
position: the object's position. Use the pixels or rows and columns coordinates format

(sms <server id>; <position>)

E.g.

(sms serverid; x10y20)
