Keypad

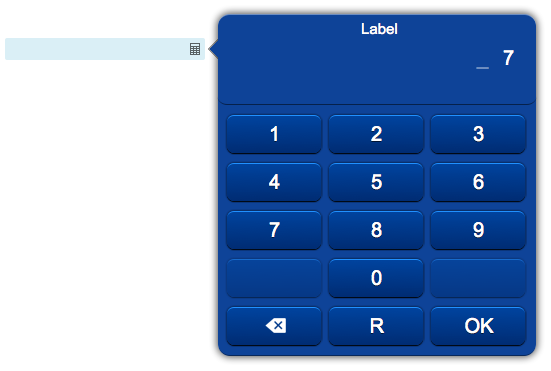

Keypad field that allows the user to input a numeric value. Clicking on the field will open a popup with a keypad panel. Can be used with a submit button.

The keypad performs range and number of digits validation of the input data.

Requires an ID.

For a tutorial on using this object, see Working with Forms

Parameters

• id: the object's ID, used by UISets
• position: the object's position. Use the pixels or rows and columns coordinates format
• min: the smallest accepted value
• max: the largest accepted value
• digits: the number of required digits; leave empty to accept a variable number of digits
• decimals: the maximum number of decimal digits; leave blank for integer numbers
• type: set to "input" for ordinary data; set to "password" to hide the digits
• label: the label shown at the top of the keypad panel
• css: optional. Defines the CSS style for the keypad field

Syntax

(keypad!id <pos>; <min>; <max>; <digits>; <decimals>; <type>; [<label>]; [<css>])

E.g.

(keypad!mykeypad x3y20; 0; 100; 2;; input; Label;)

UI Attributes

Common attributes

Name	Value	Description
pos	x<x>y<y>	Position specified as x/y coordinates. E.g. x-5y10
visible	true	Default. Show the object
	false	Hide the object
blink	true | slow	Blink the object at a slow speed
	fast	Blink the object at a fast speed
	false	Stop the blinking
opacity	0.0 ... 1.0	Object opacity from 0 (not visible) to 1 (fully visible)
rotation	0 ... 360	Object rotation in degrees. Images are rotated around the center point, all other objects are rotated around the top left corner

Field attributes

Name	Value	Description
enabled	true	Field is enabled
	false	Field is disabled
autosend	true	Automatically sends the value on changes. It's the default behaviour when there are no submit objects on the page or in a parent container (if the field is inside a container).
	false	Won't send the value on changes. It's the default behaviour when there's a submit object on the page or in a parent container.
focus	true	Focus the field. Only a single object should have this attribute at "true".
	false	Reset focus
rollback	true	Restores the previously saved value.
rollbackenabled	true	Automatically restores the previous value on an error (if the value isn't valid or the remote request resolved in an error).
	false	Won't restore the value on errors.
error	true	Manually shows an error feedback on the field (won't modify the current field value).
	false	Hides the error visualization.

Keypad attributes

Name	Value	Description
value	number	Keypad value
min	number	The smallest accepted value
max	number	The largest accepted value
digits	number	The number of required digits; leave empty to accept a variable number of digits
decimals	number	The maximum number of decimal digits; leave blank for integer numbers
ktype	input	Show the digits
	password	Hide the digit
label	string	The label shown at the top of the keypad panel
