Note  For a description and a complete list of UI Objects, see UI Objects.

This object provides the user interface to the HSYCO's scheduler system. The scheduler is a powerful function that allows you to define a set of calendar entries to schedule actions at the beginning and end of each time interval.

A normal scheduler rule is defined with a start date/time and an end date/time and is valid within the defined period, even across several days. A daily rule is instead defined to be valid between a start time and end time, on a single day or spanning several days. If the end time is less than the start time, it will be considered as the next day.

The "repeat every year" flag can be set to automatically repeat the date interval on every year following the initial date.

In addition to the validity dates, you can set a rule to be active only on specific week days. When the current time matches the date/time and week days, the default behavior is that the scheduler generates a TIMER <schedule name> = ON event and the corresponding userTimerEvent() Java callback — just like the (timer) object — and a TIMER <schedule name> = OFF event at the end of the period.

You can also define an interval rule, setting the on and off minutes. An interval rule will go on and off repeatedly during the date/time validity period. Each rule has a group. This group is used to generate the events, and is not unique, as you can define several rules under the same group. In this case the scheduler will evaluate the rules having the same group in the order they appear in the scheduler display, from top to bottom. When a rule matches the date/time validity period, the scheduler stops checking any following rules with the same group. So, rules on top have priority within the rules with the same group. Rules set to work in off mode are used as "blocking rules", because when they are valid they will not become active, and at the same time will prevent the scheduler from processing the following rules that could otherwise match.

A scheduler has two graphical modes: compact and wide, depending on the object's width. A width of 750 pixels or more will toggle the wide mode that will display both the list of rules and the rule's details.

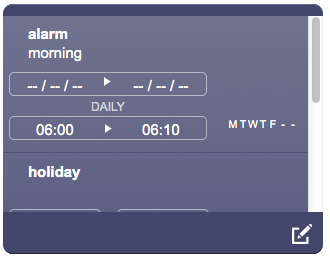

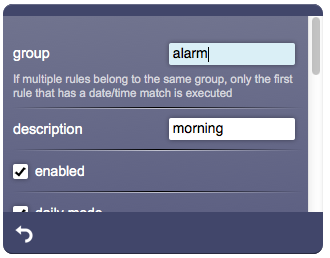

Here's a scheduler in compact mode, showing the list and the details:

UI Object scheduler.1.png UI Object scheduler.2.png

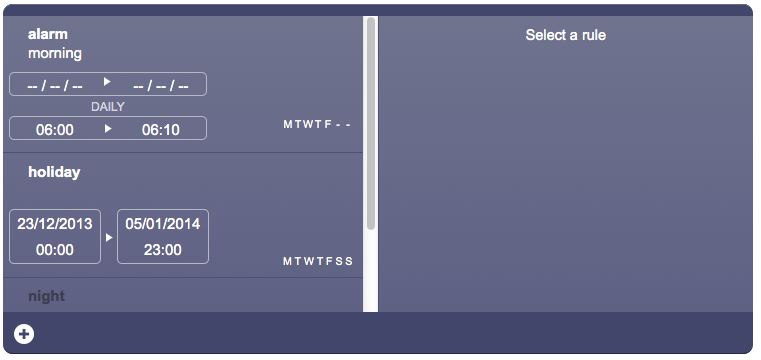

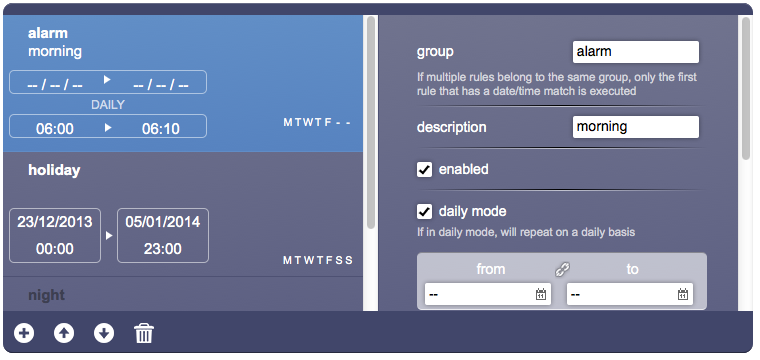

Here's a scheduler in wide mode:

UI Object scheduler.3.png UI Object scheduler.4.png

Parameters

  • id: the object's ID, used by UISets
  • position: the object's position. Use the pixels or rows and columns coordinates format
  • size: panel's width, in pixels
  • rule list mode: set to “edit” to enable the creation or deletion of individual schedules. Set to “noedit” to only allow editing of already defined schedules
  • groups: optional, comma separated list of schedule group names that are shown in this object. If the list is not defined or set to "*", the object shows all groups

Syntax

(scheduler <position>; <width>; <height>; <mode>; <names>)

E.g.

(scheduler!myscheduler x3y256; 750; 350; edit;)

UI Attributes

Common attributes

Name Value Description
pos x<x>y<y> Position specified as x/y coordinates. E.g. x-5y10
r<r>c<c> Position specified as row/column. E.g. r1c2
visible true Default. Show the object
false Hide the object
blink true | slow Blink the object at a slow speed
fast Blink the object at a fast speed
false Stop the blinking
opacity 0.0 ... 1.0 Object opacity from 0 (not visible) to 1 (fully visible)
rotation 0 ... 360 Object rotation in degrees. Images are rotated around the center point, all other objects are rotated around the top left corner
