Note  For a description and a complete list of UI Objects, see UI Objects.

A panel that monitors the system. These parameters are displayed:

  • system boot time
  • HSYCO start time
  • disk free space
  • memory in MBs: used, free, max
  • CPU usage in %: busy, load 1m, load 5m
  • faults: console, internet, cameras, I/O servers
  • error messages

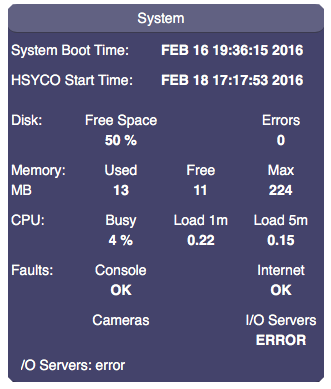

UI Object hsycomonitor.png

Parameters

  • server ID: the ID of the server as specified in hsyco.ini
  • label: the text label on the panel. Can contain HTML tags
  • position: the object's position. Use the pixels or rows and columns coordinates format

Syntax

(hsycomonitor <server ID>; <label>; <position>)

E.g.

(hsycomonitor system; System; x10y20)
